WARNING
**This should be performed by a professional gun smith. We are not held liable for any damage or injury as a result of (or during) installation.**
Tools Needed:
- 5/64" hex key
- Flat head screw driver
The following will walk you through installing your magazine extension (+10rd, +17rd, +20rd).
Compatible magazines: Factory Taurus TX22 Magazines only
**Make sure weapon is unloaded**

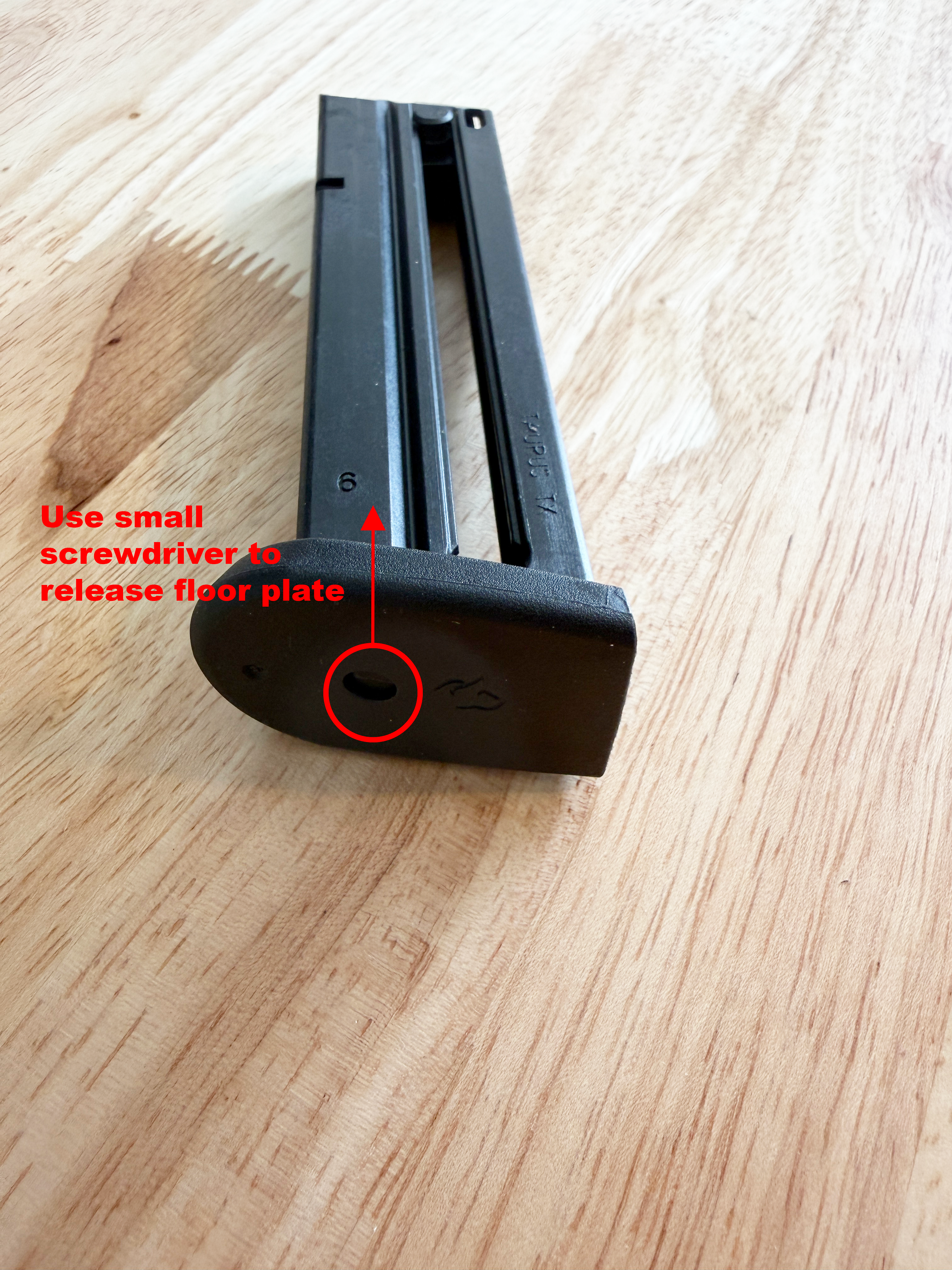

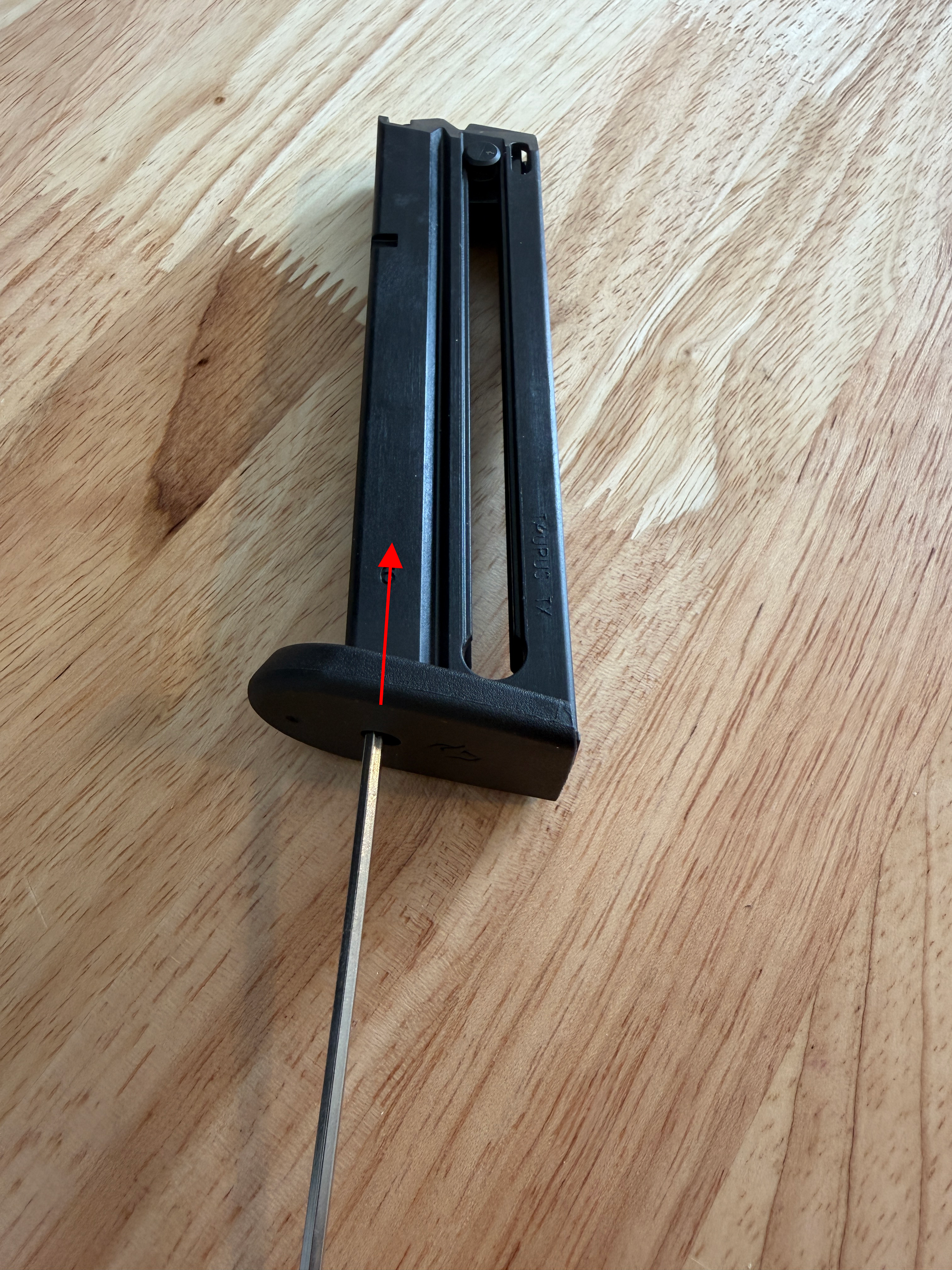

- Remove the floor plate from the TX22 magazine by releasing spring tension through circular hole on the floor plate.

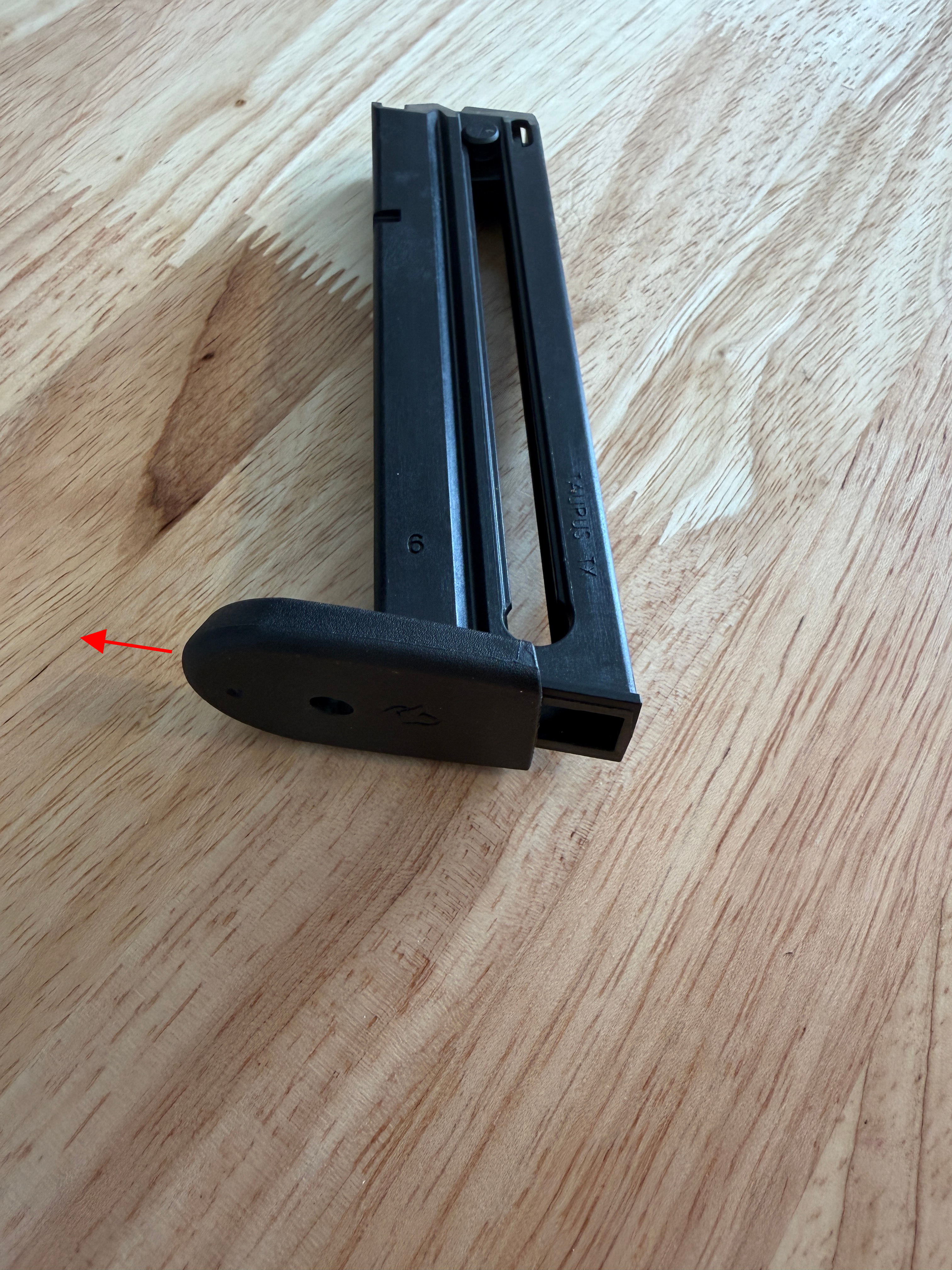

- Remove the floorplate from the magazine tube by slowly sliding the floor plate forward (same direction rounds are fed).

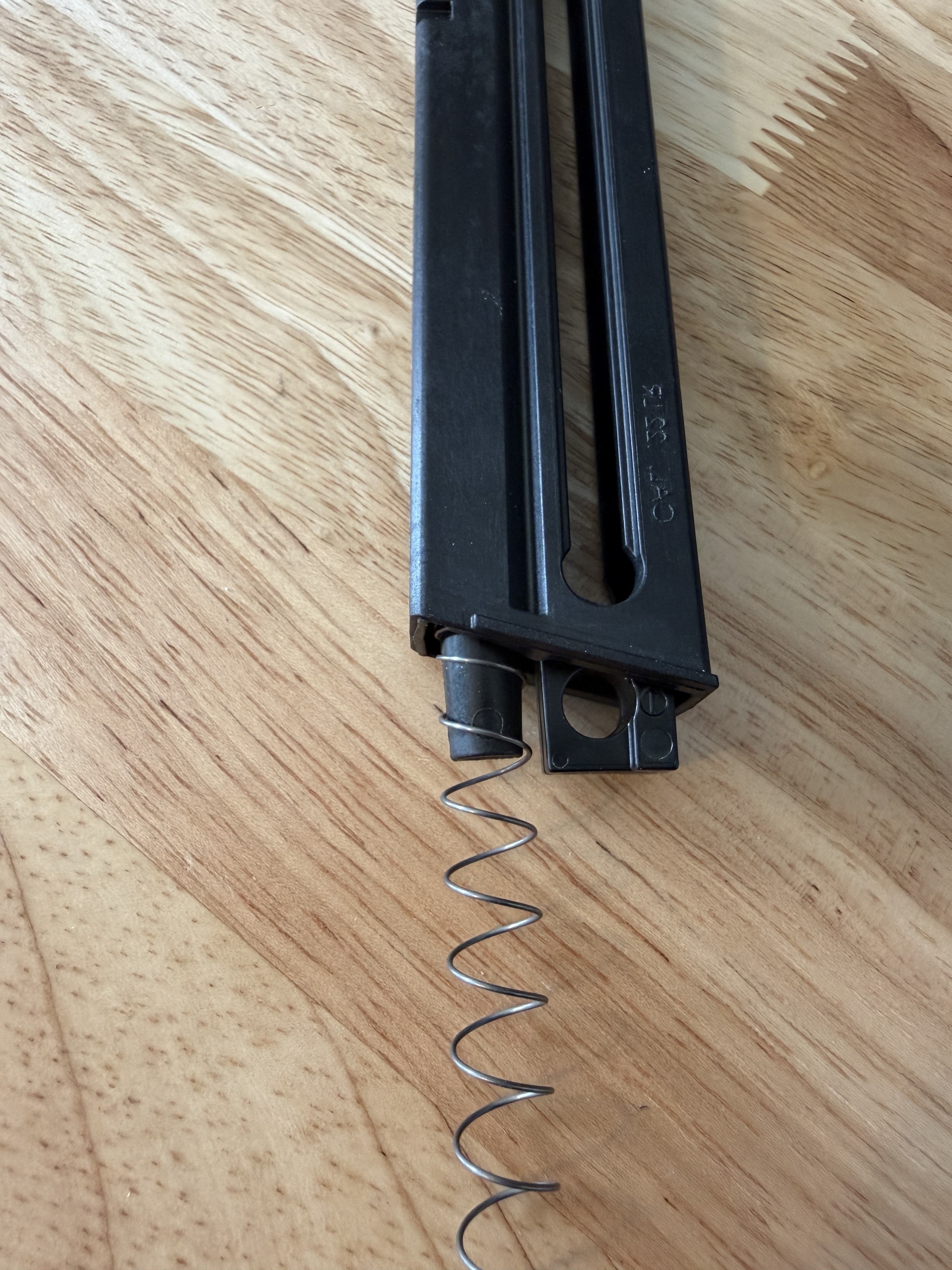

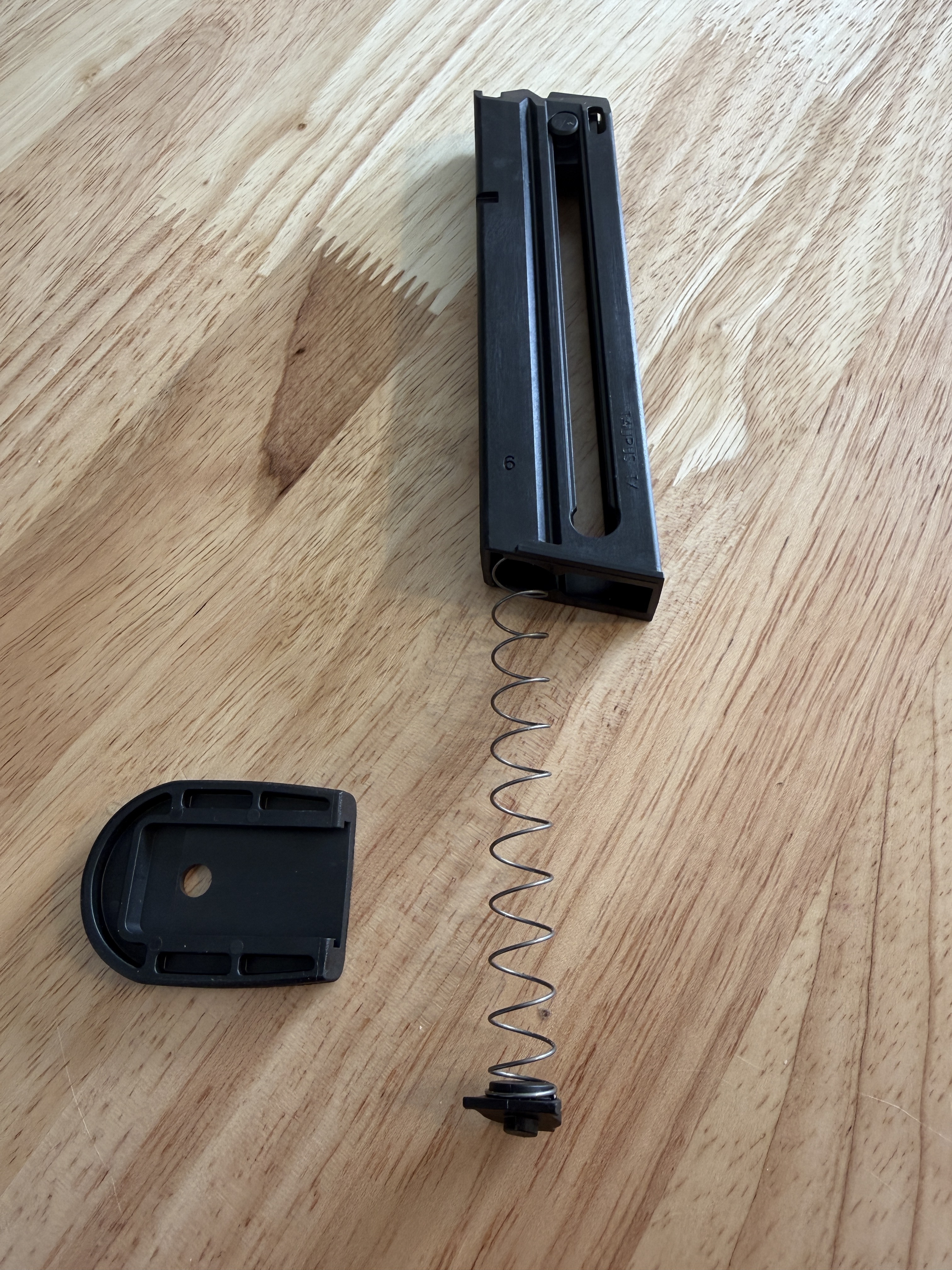

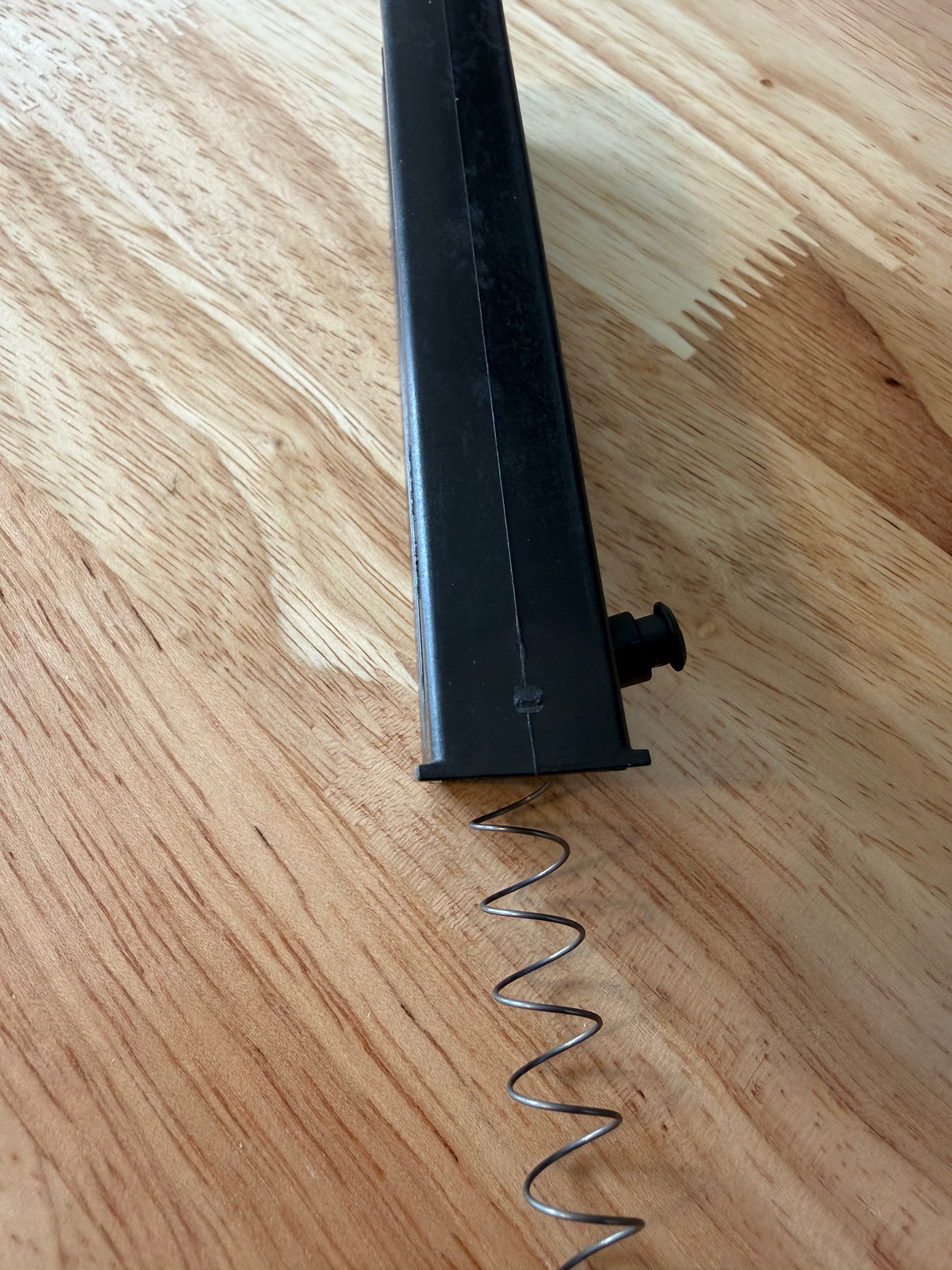

- The spring is still under tension, so keep your thumb over the floor plate to capture the magazine spring and slowly release spring tension.

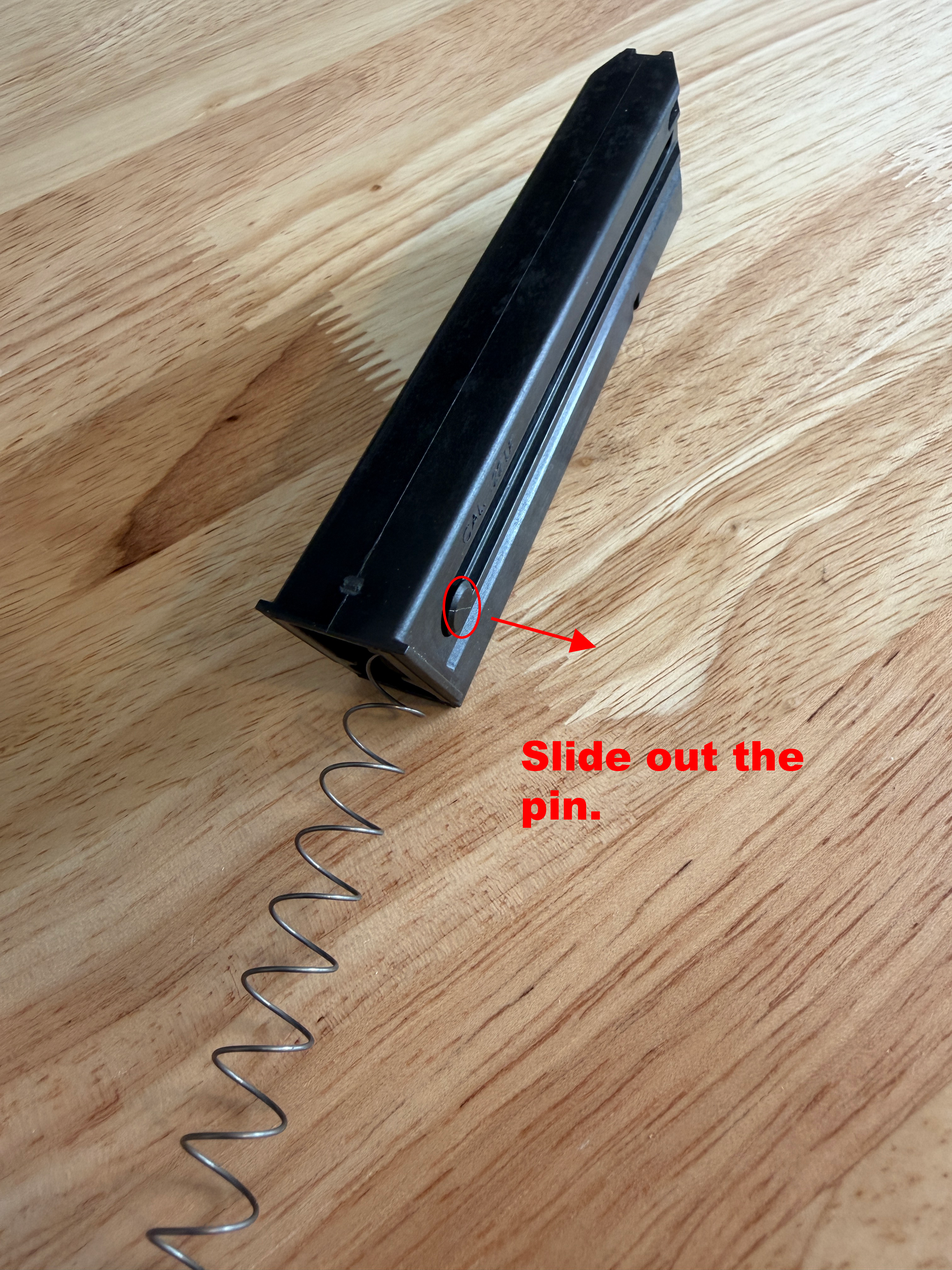

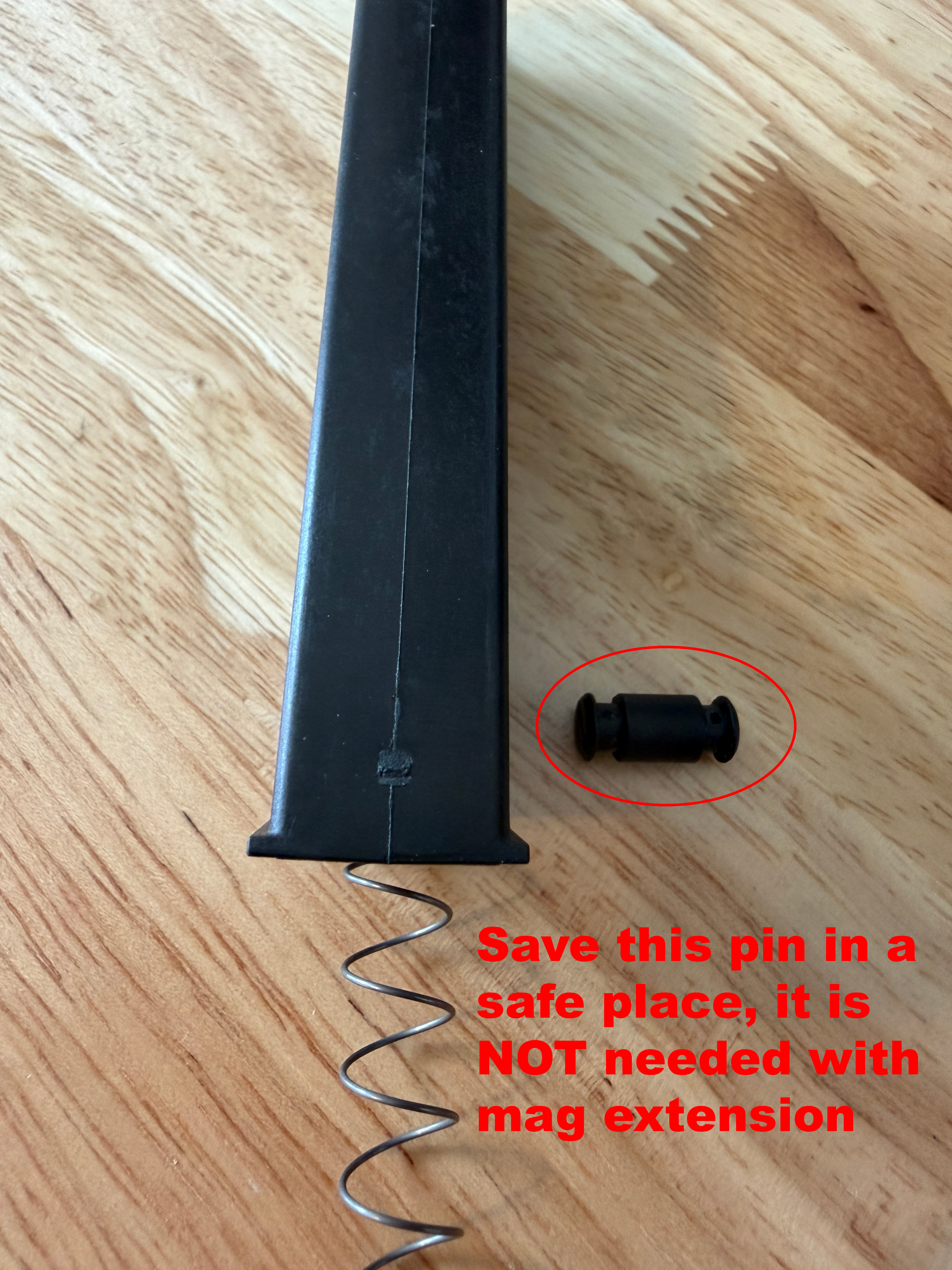

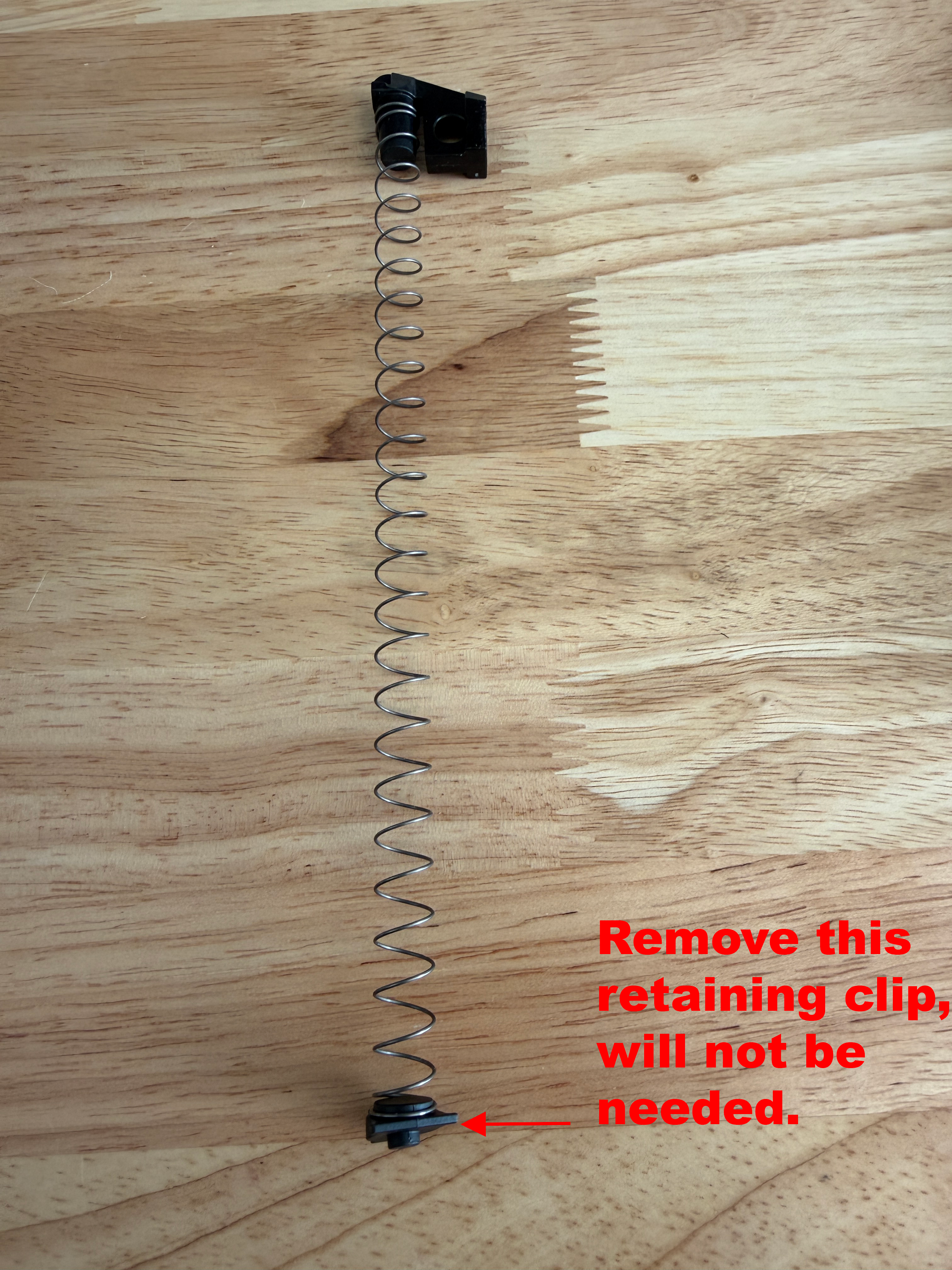

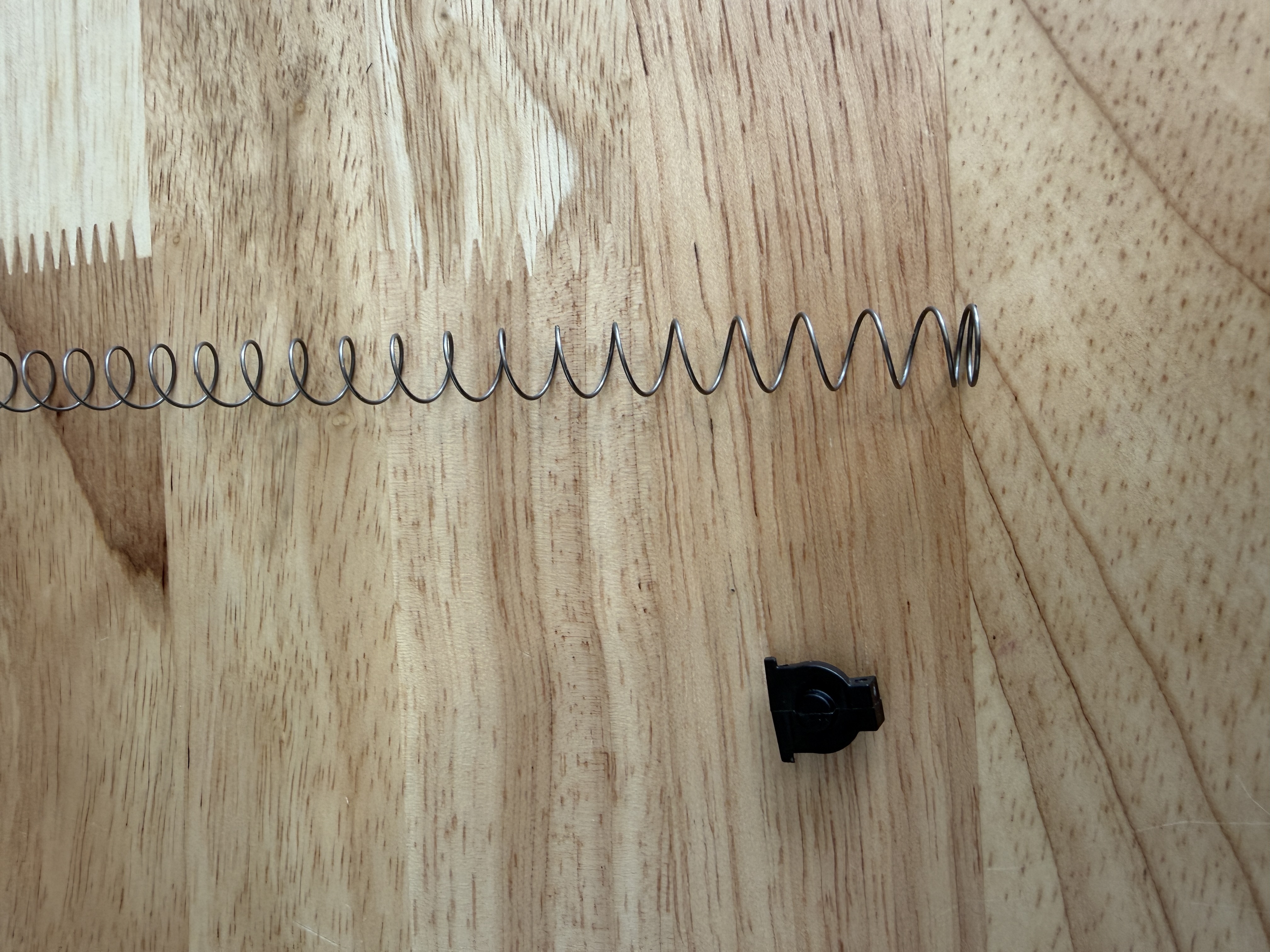

- Slide follower to the bottom of the magazine and remove the pin retained in the follower.

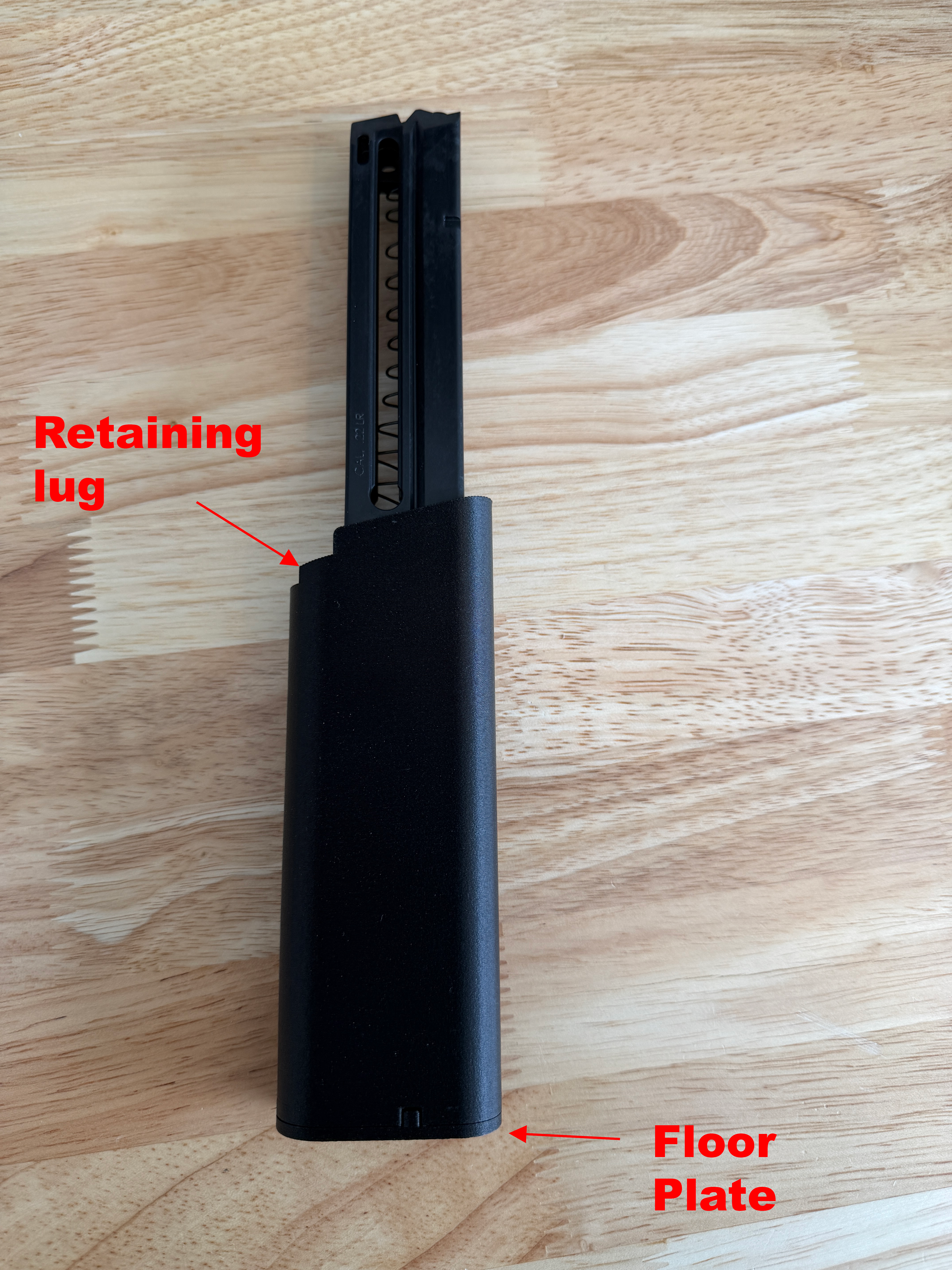

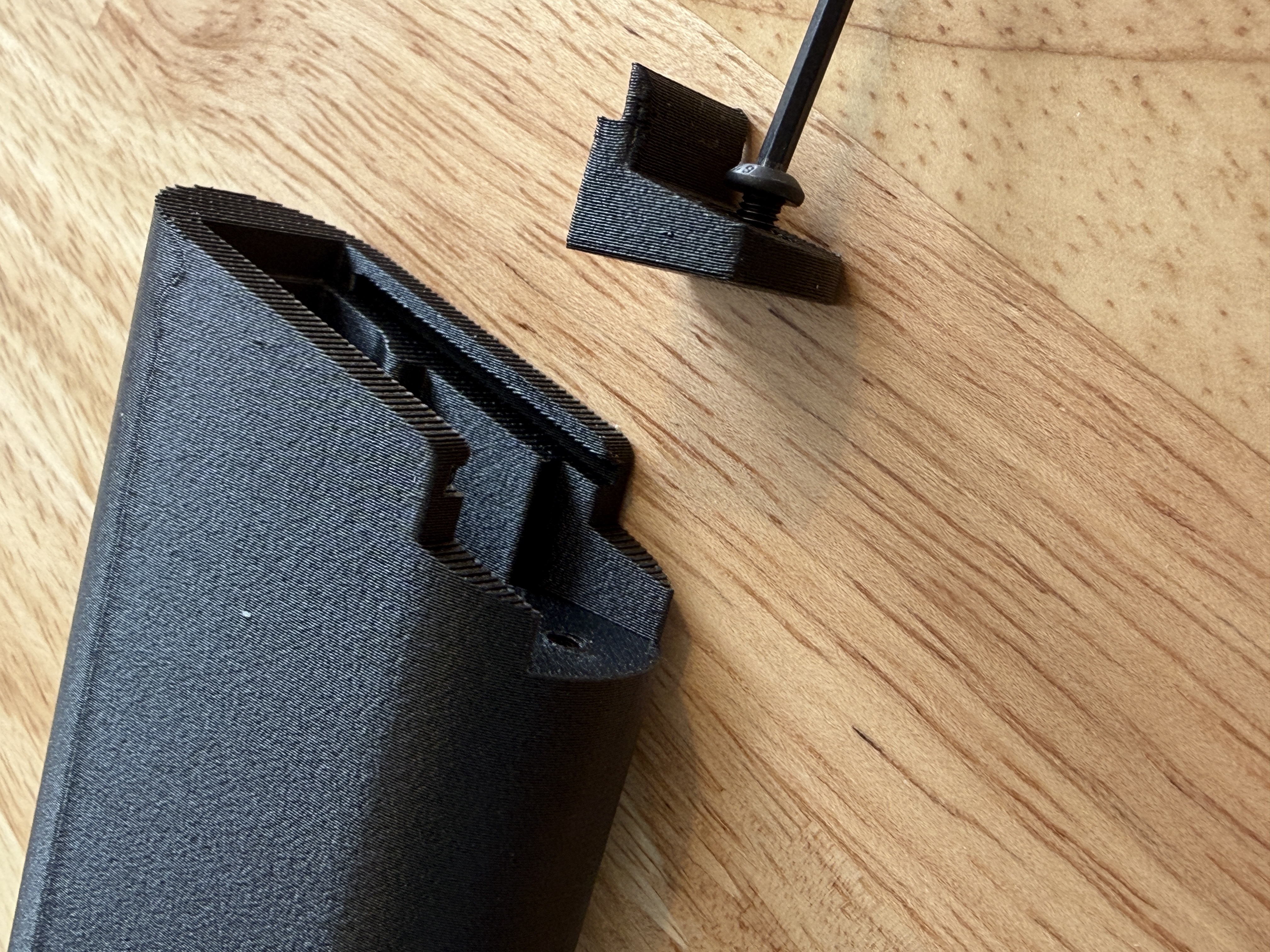

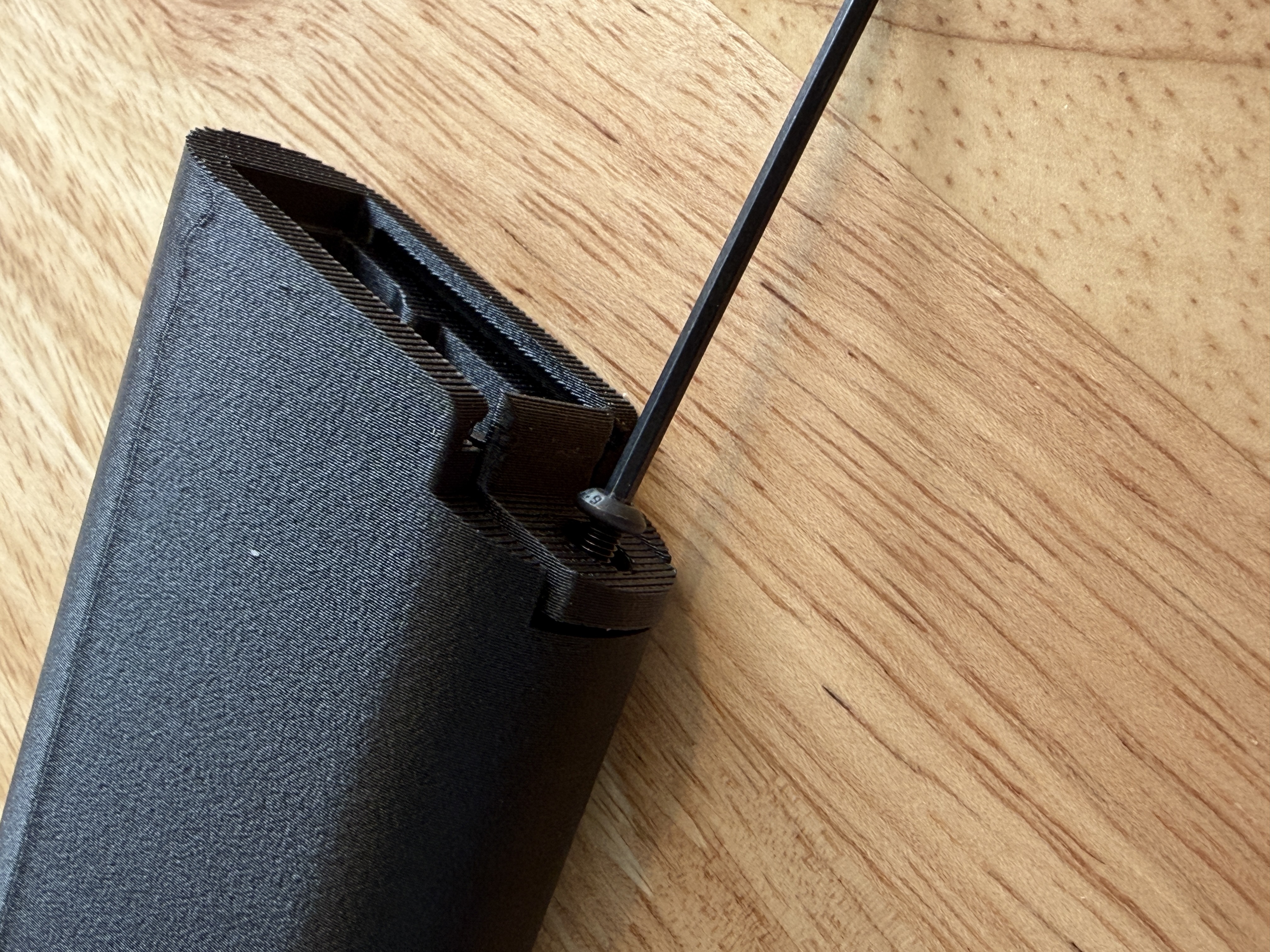

- Prepare your mag extension for installation by removing the floor plate and retaining lug with a 5/64 hex wrench

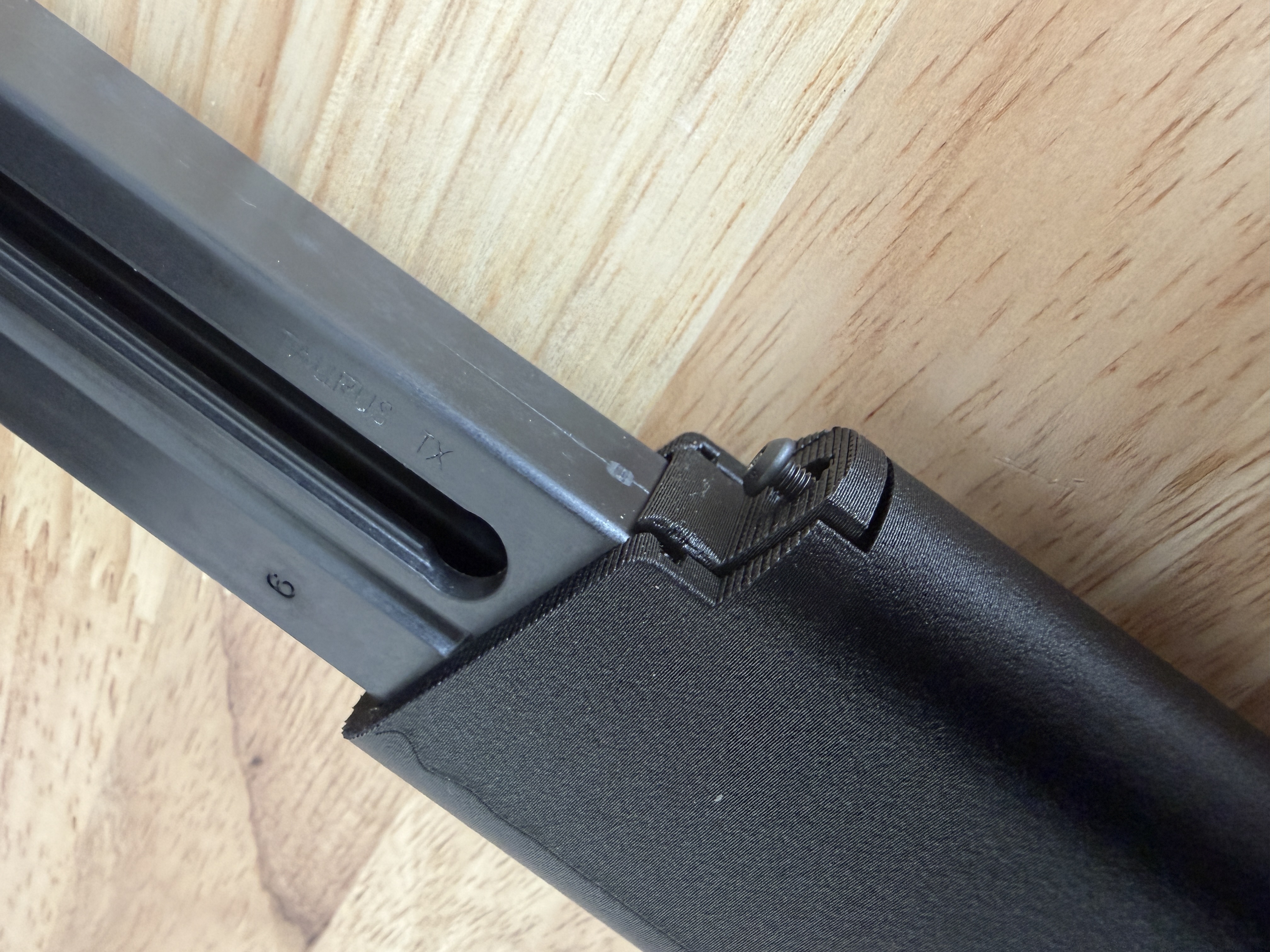

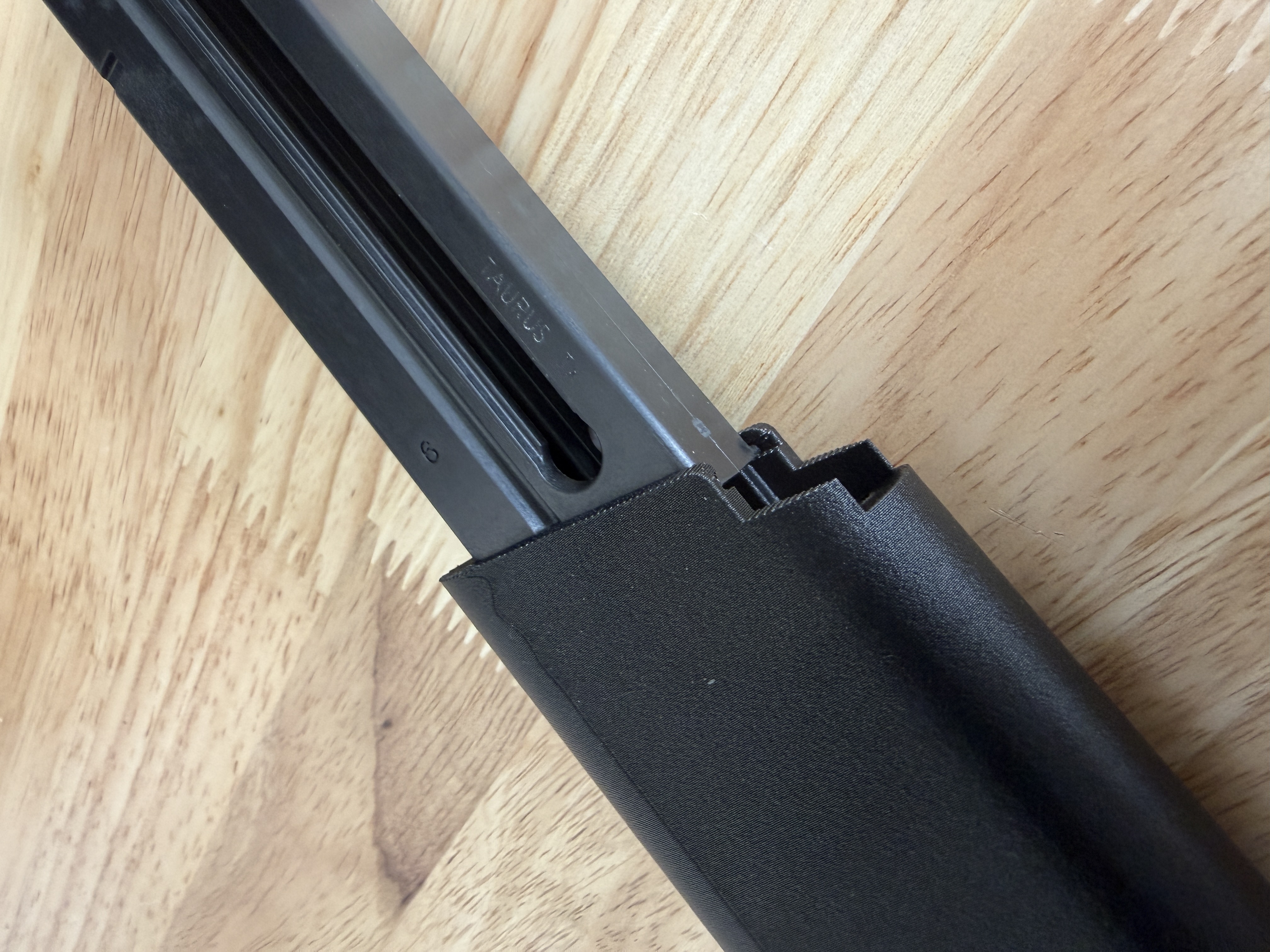

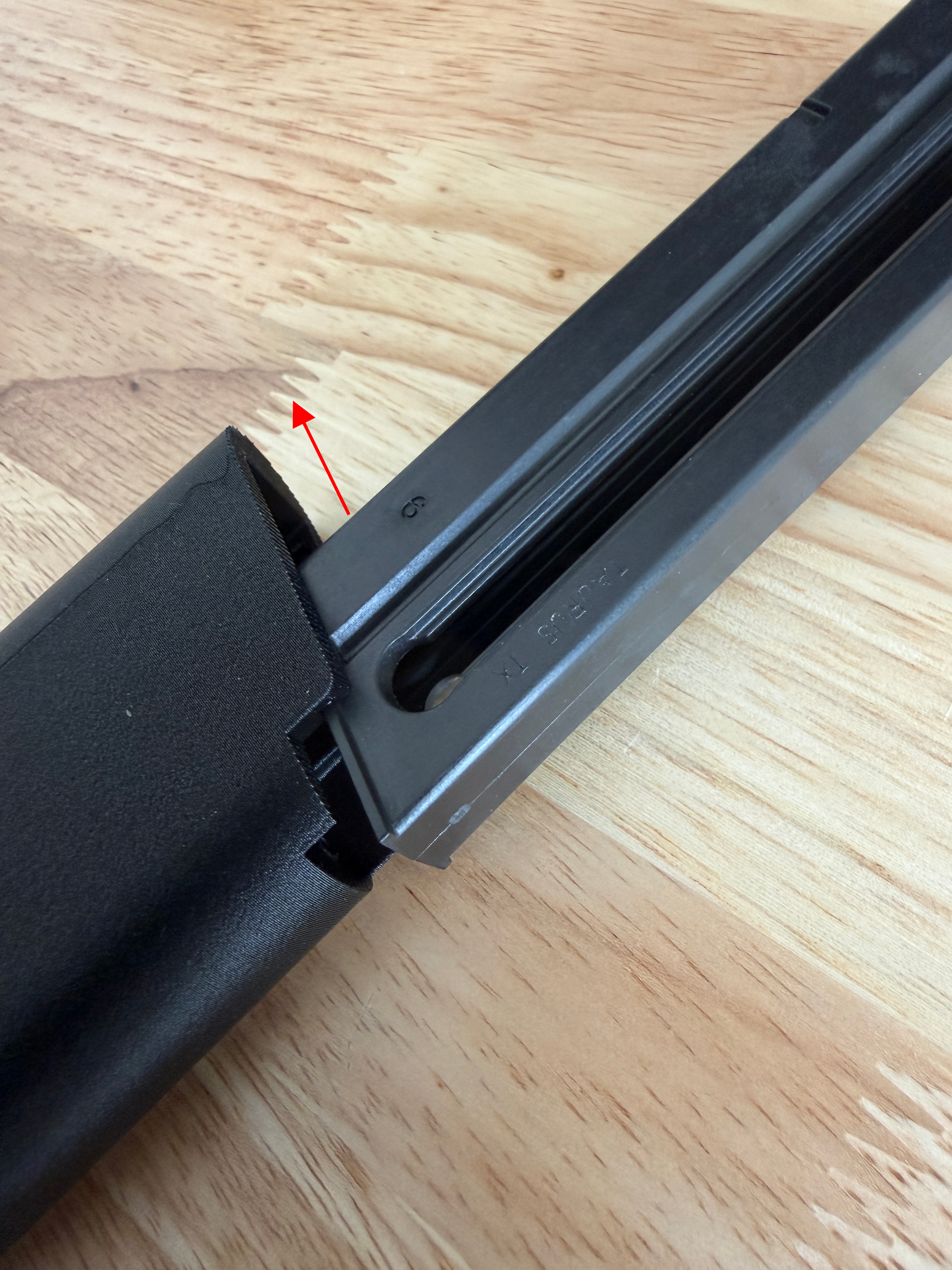

- Slide magazine on to mag extension and re-install retaining lug.
- Do not overtighten screw(s), finger-tight is sufficient.

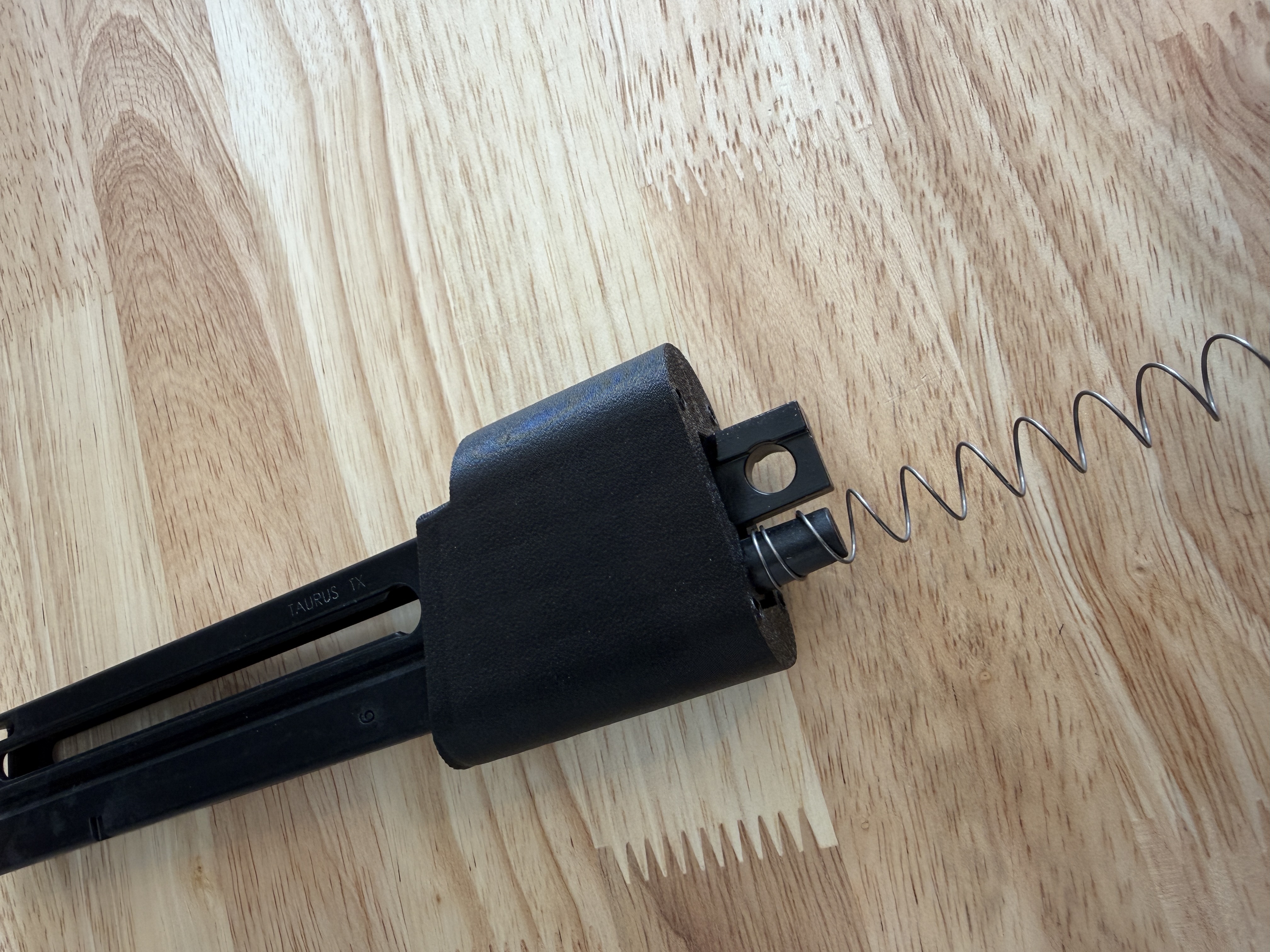

- Insert follower and spring assembly
- +10 rd extension (Use existing OEM spring)
- +17 rd extension (Use the provided spring in kit)
- +20 rd extension (Use the provided spring in kit)

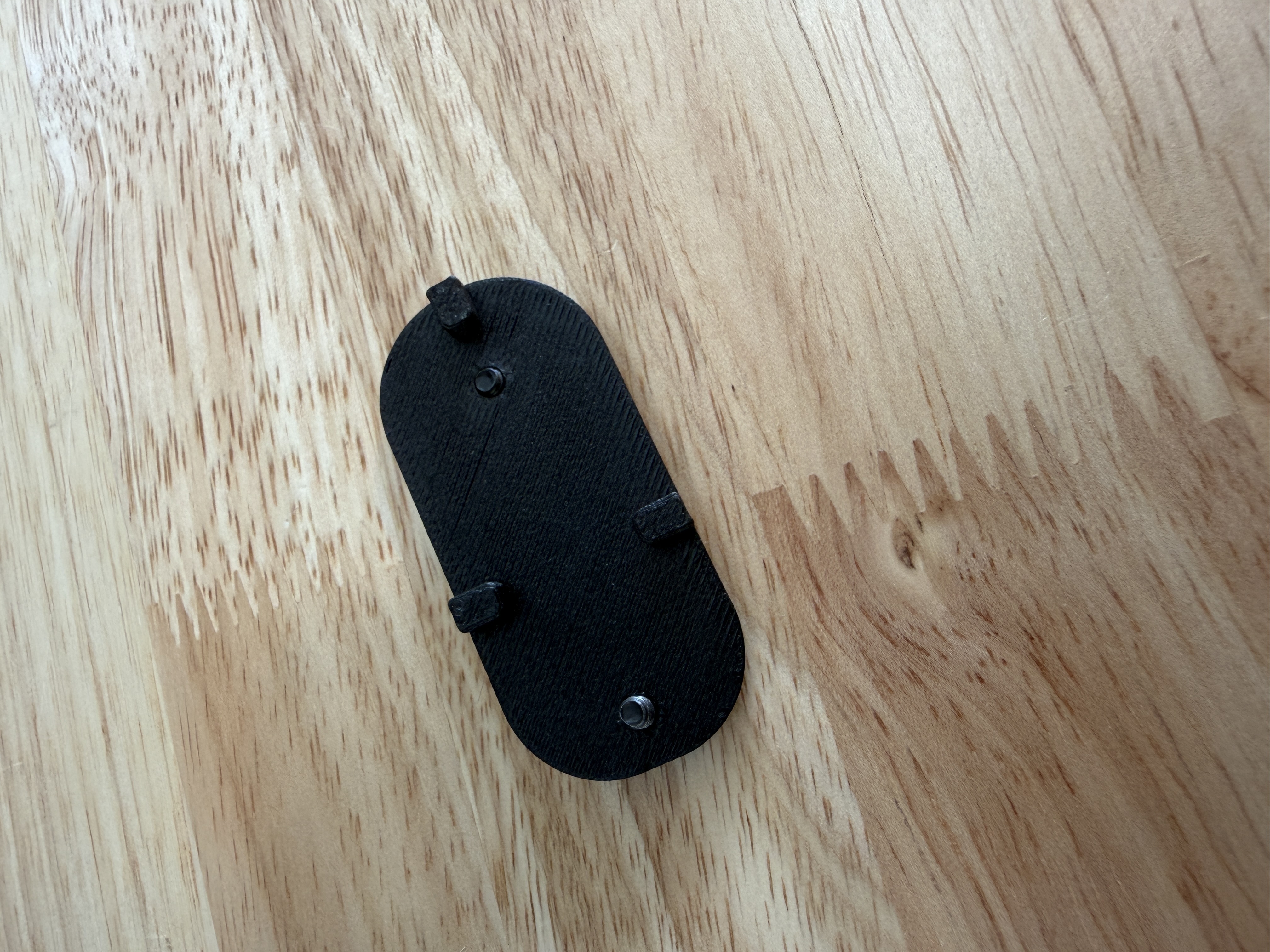

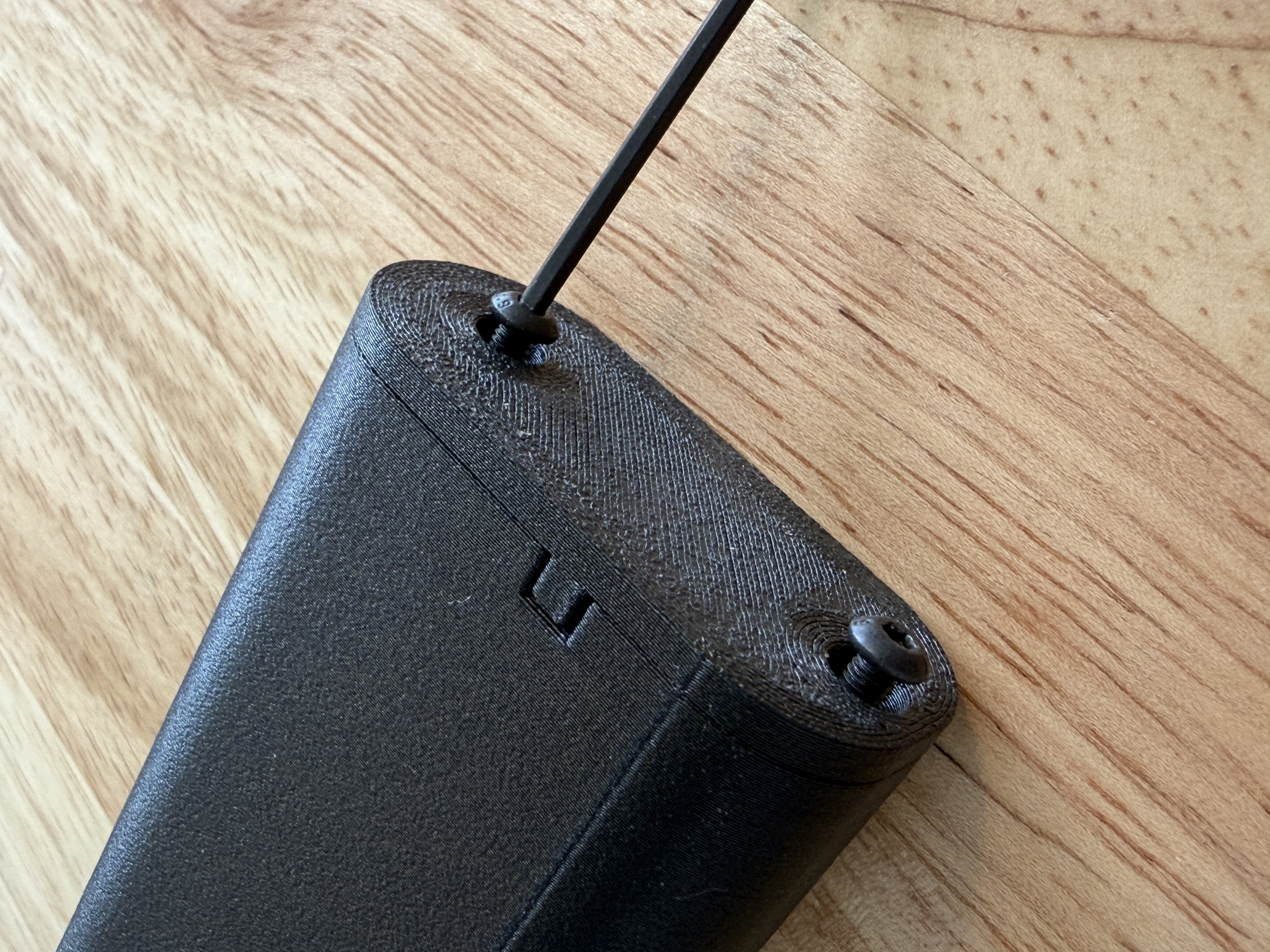

- Line up the 3 notches on the floor plate with the mag extension and screw down the floor plate
- Do not overtighten screw(s), finger-tight is sufficient.
